Handling glass should always be done in a safe and efficient manner. Through continuous innovation, Yinrui - in partnership with Flat Glass Solutions - can now offer you a number of cost effective options for any loading application to any cutting table. From a static two-position loader to multi-position stations, we can now install a fully automated and intelligent loader to suit your budget as well as being tailored to your space requirements.

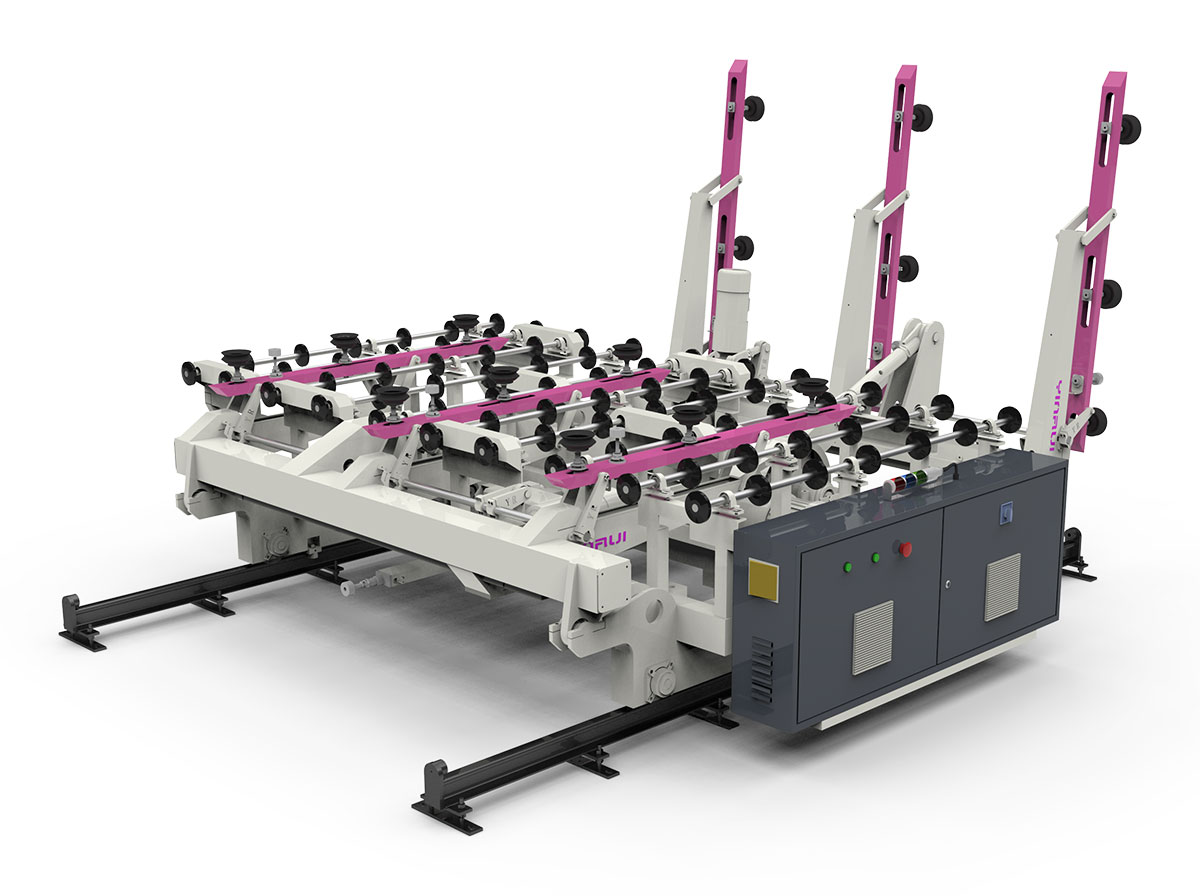

LS-2520

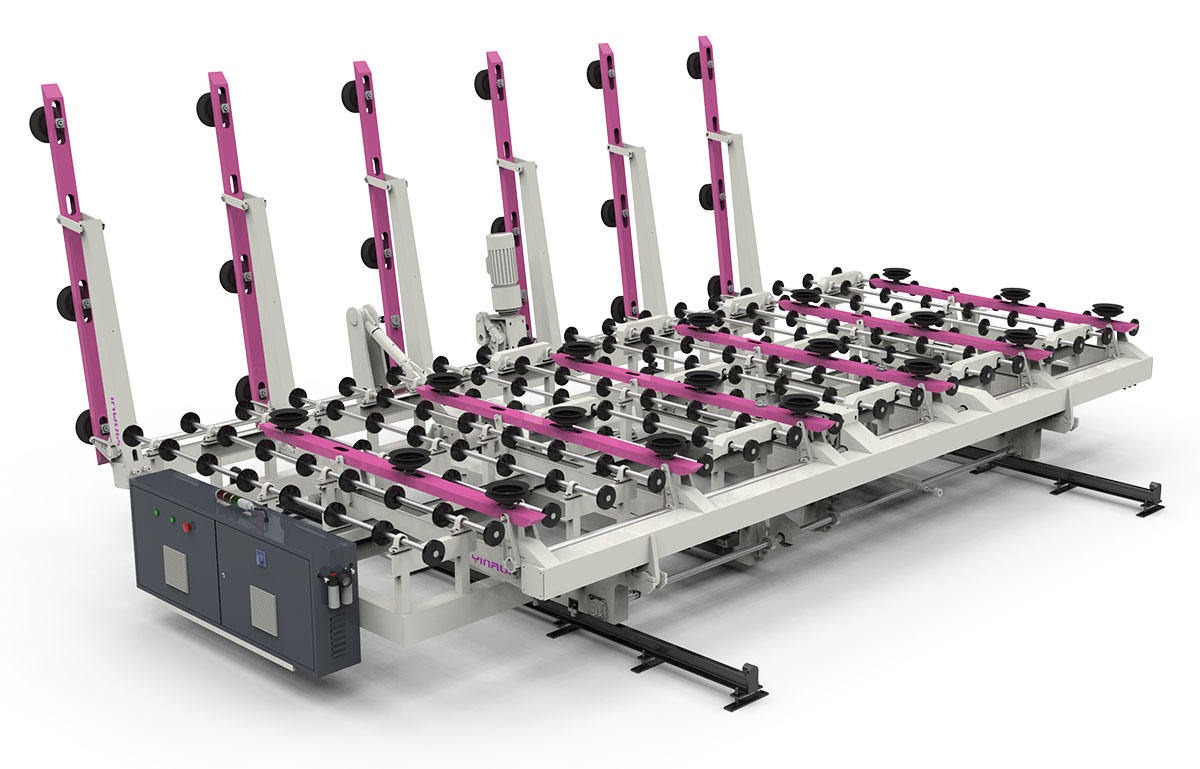

LS-6133

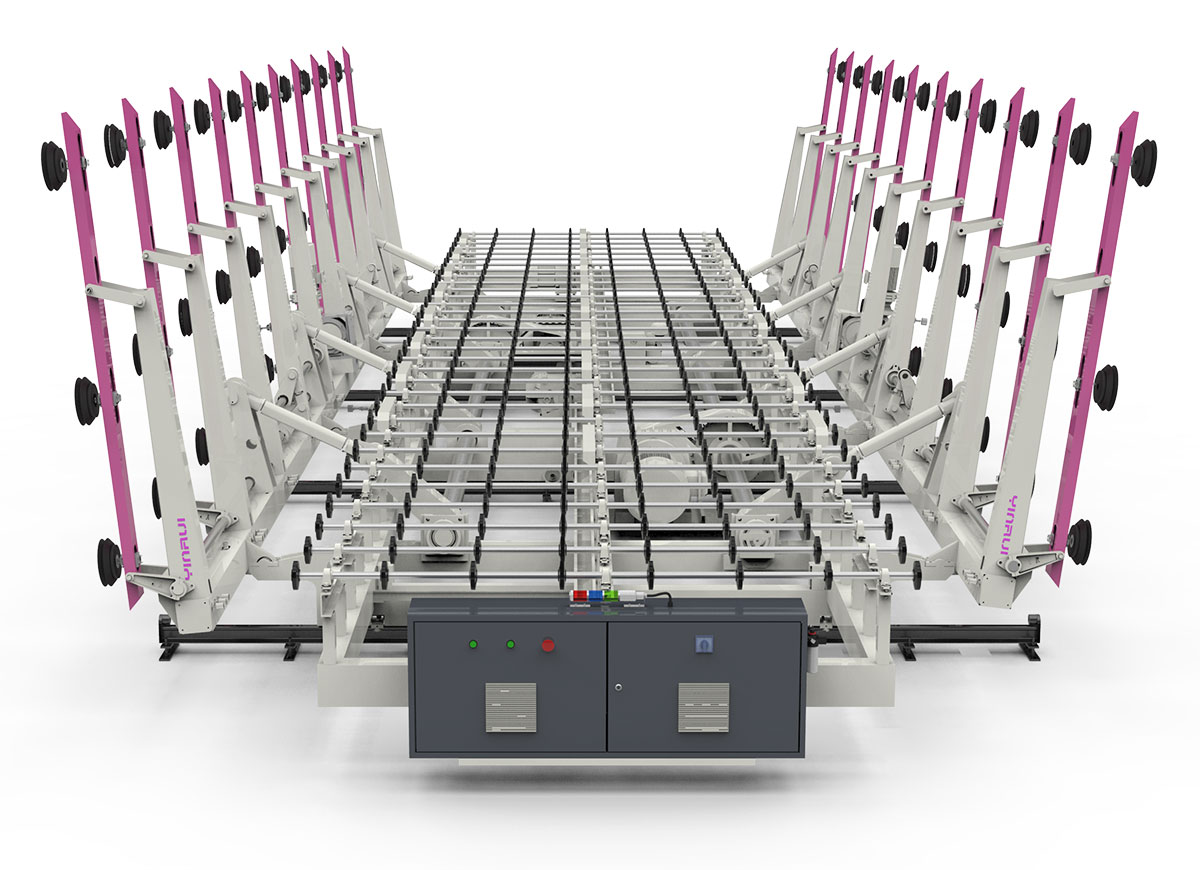

LS-12533YR-LS
Our YR Glass Loading Systems are compatible with, and can be integrated to, any cutting table. They are available in a range of sizes and can be operated in a single 'X' direction or can travel in both 'X' and 'Y' directions to load from multiple stations. If installed to a single static rack, they can 'collect' and load glass from almost any depth.
Independent control or integration to an existing cutting table. Intelligent control means the loader can be set to run with one key stroke for repeated operation.
View Specs| Model | Glass Max | Glass Thickness | Power |
| LS-2010 | 2000 x 1000mm | 1 - 25mm | 5kW |
| LS-2520 | 2500 x 2000mm | 2 - 25mm | 6kW |
| LS-4228 | 4200 x 2800mm | 3 - 25mm | 10kW |
| LS-6133 | 6100 x 3300mm | 3 - 25mm | 16kW |
| LS-9133 | 9100 x 3300mm | 3 - 25mm | 18kW |
| LS-12533 | 12500 x 3300mm | 4 - 19mm | 32kW |
| LS-16533 | 16500 x 3300mm | 6 - 19mm | 42kW |
