Installing a fully automatic glass cutting line - including loading, cutting and breakout sections - is no longer an unachievable goal. Flat Glass Solutions, in co-operation with Anhui Yinrui, can now offer the complete solution for cutting monolithic glass with options extending to a fully automatic break-out system. Yinrui has supplied cutting systems all over the world and boasts the unique record of producing the largest fully automatic line capable of processing a single glass sheet up to 16500mm x 3300mm.
View Brochure
SmartCut

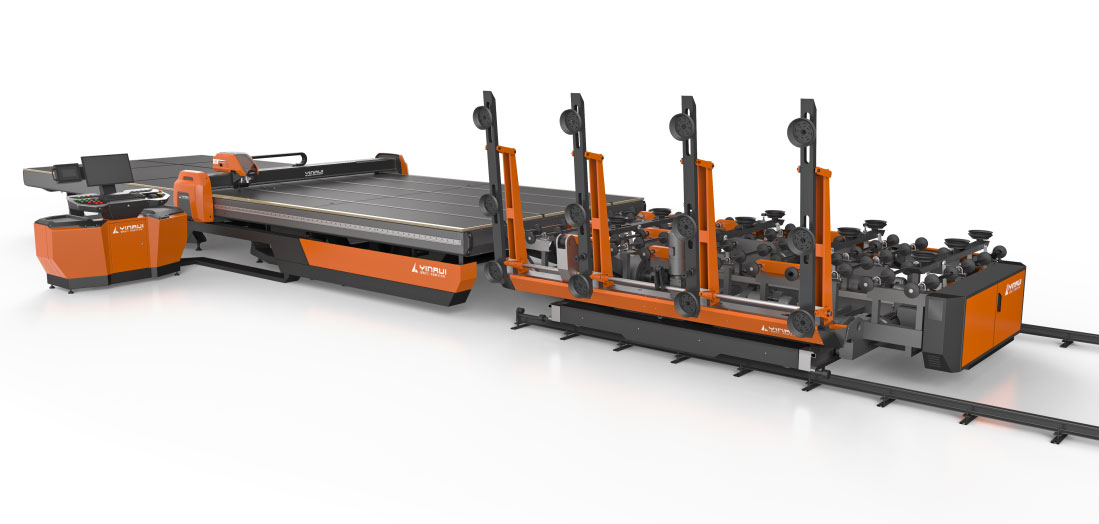

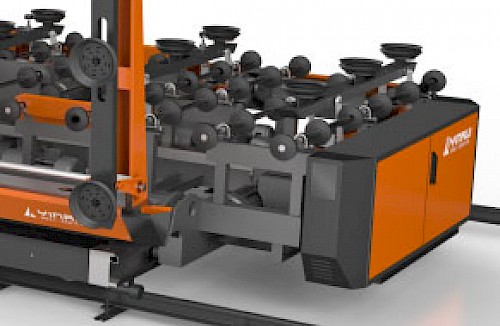

The SmartCut model, an all-inclusive glass cutting line, is the most advanced glass cutting solution available from Flat Glass Solutions and Anhui Yinrui. Our partnership with Yinrui Technology Company means we can now present a practical and economically viable solution to cutting – including loading, cutting and break out.
Special Features:
- Easy access for service and maintenance.
- Precision manufactured components ensure cutting accuracy all combined with aerospace technology.

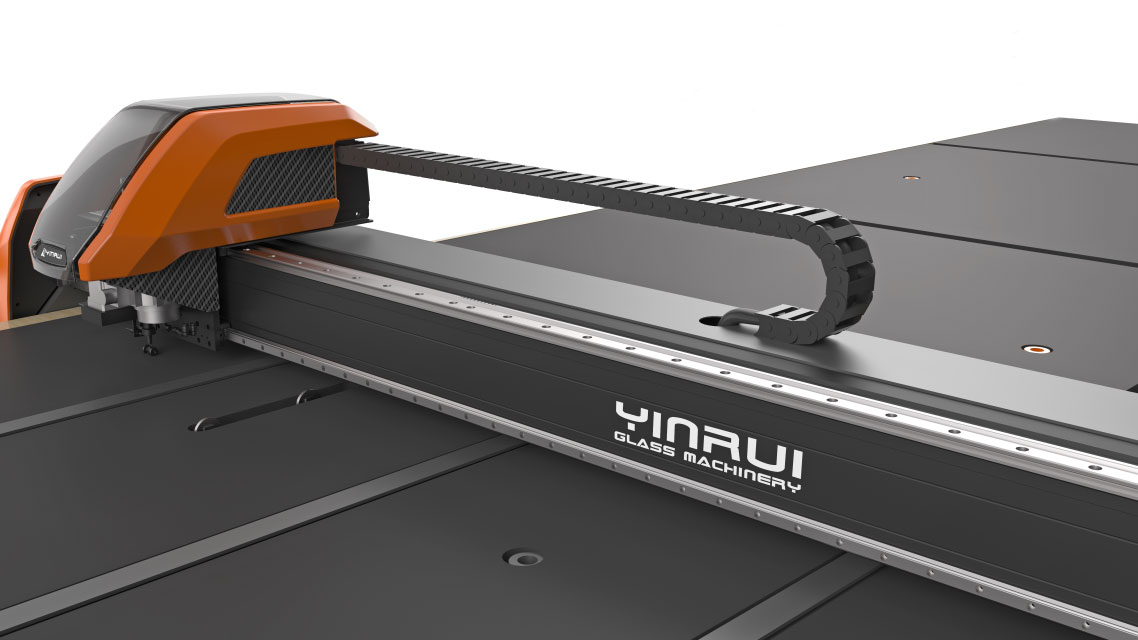

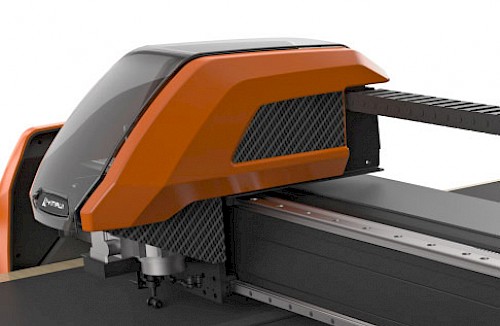

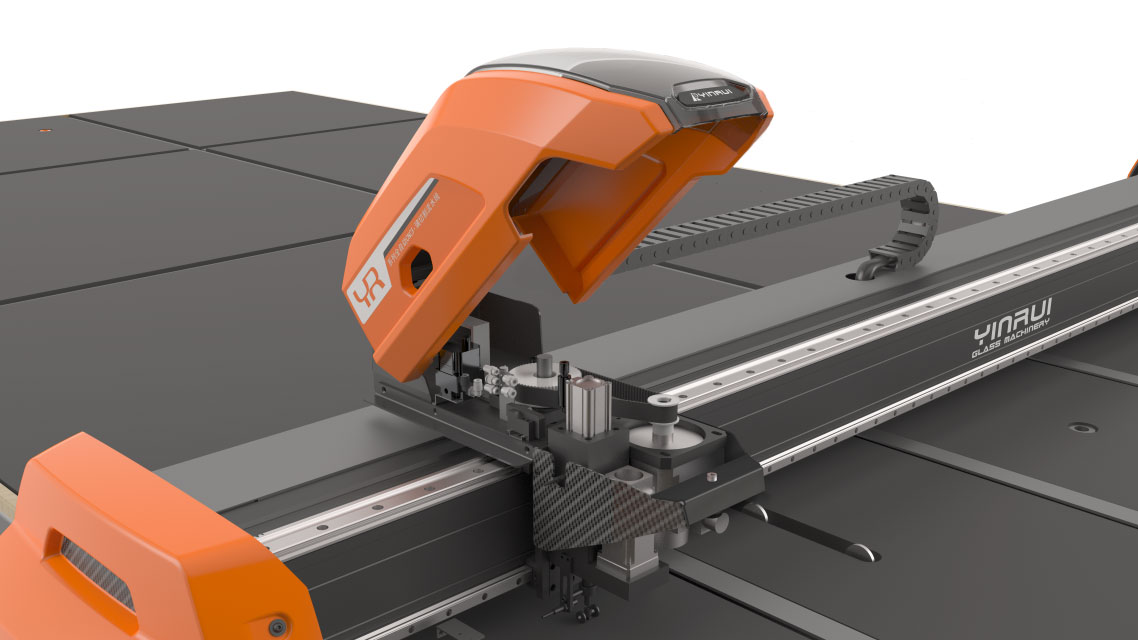

- The cutting bridge utilises precision extruded alloy profiles which eliminates welded joints and reduces vibration allowing high speed cutting reaching 200m/min.

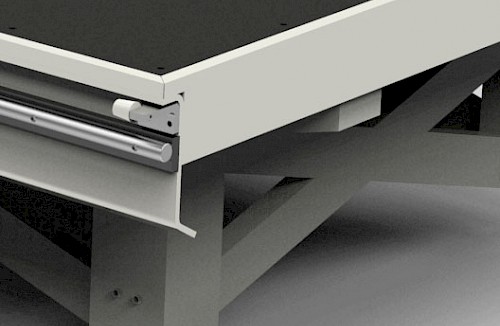

- Both sides of the table have an integrated and seamless rack and gear system perfectly aligned which ensure high rigidity, stability and precision operating.
| Model | YRA-4228 | YRA-6133 |
| Glass Max | 4200 x 2800mm | 6100 x 3300mm |
| Glass Thickness | 2 - 25mm | 3 - 25mm |
| Speed Max | 200m/min | 200m/min |
| Accuracy ± | 0.20mm/m | 0.20mm/m |
| Power | 19kW | 24kW |
| Footprint | 13.5m x 2.8m | 21.0m x 4.5m |
SCL-4228
SCL-6133YR-SCL

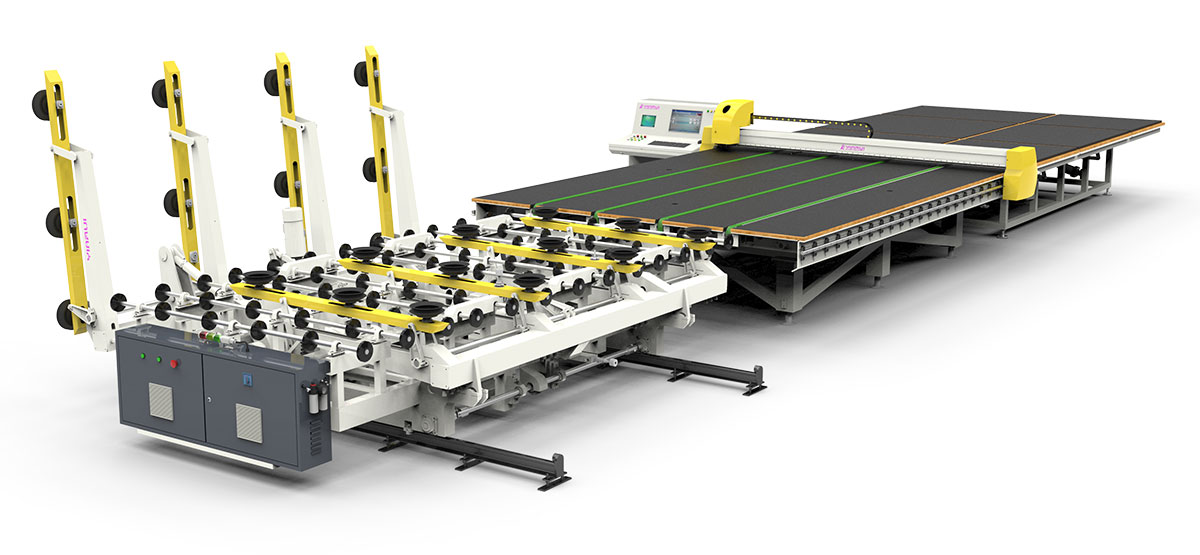

Automatic Standard Glass Cutting Lines

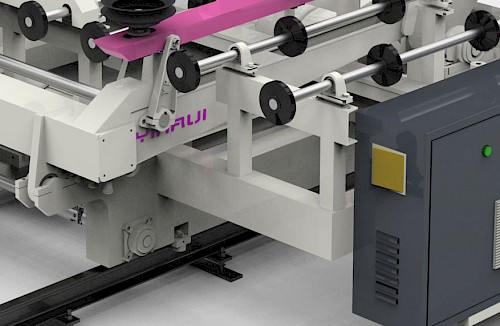

The standard range of cutting lines - including loading, cutting and break out.
-

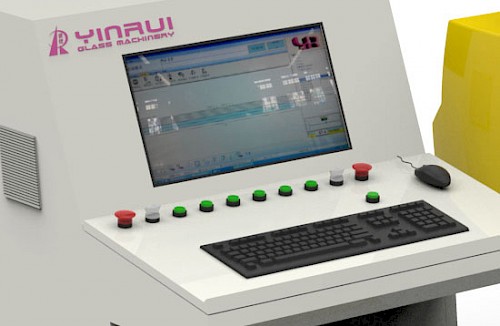

Excellent quality equipment with stand alone or integrated software options.
-
User friendly for simple and convenient operation.
-
Powerful optimisation software means low wastage on glass.
-
Low maintenance and long life from the use of high quality components.
-
Automatic glass positioning.
-
High cutting accuracy.
| Model | SCL-2520 | SCL-4228 | SCL-6133 |
| Glass Max | 2500 x 2000mm | 4200 x 2800mm | 6100 x 3300mm |
| Glass Thickness | 3 - 25mm | 3 - 25mm | 4 - 25mm |
| Power | 16kW | 21kW | 26kW |
| Footprint | 9.6m x 2.8m | 13.5m x 2.8m | 21.0m x 4.5m |
