In partnership with Yinrui, Flat Glass Solutions offers cost effective options for any cutting application or requirement. From a stand alone X & Y cutter with free fall racks, to semi automatic with tilt loading, or fully automatic including glass positioning and self loading, all levels of clients can be satisfied that we have something to suit their needs and budget.
View Brochure
YR-EL Entry-level Cutting Tables
YR EL-1310
YR EL-2520
Stand alone automatic CNC cutting tables.
Independent control or data entry via company network software. Aluminium alloy cutting bridge. High strength quenched steel frame. Integrated optimisation software as standard.
View Specs| Model | EL-1310 | EL-2520 |
| Glass Max | 1300 x 1000mm | 2500 x 2000mm |
| Glass Thickness | 1 - 19mm | 2 - 25mm |
| Speed Max | 120m/min | 160m/min |
| Accuracy ± | 0.20mm/m | 0.20mm/m |
| Power | 6kW | 10kW |
| Air | 6bar | 6bar |
YR-EL Entry-level Cutting Tables
YR EL-4228
YR EL-6133
Stand alone automatic CNC cutting tables.
Air floatation and belt drive for moving and indexing glass sheets. Aluminium alloy cutting bridge. High strength quenched steel frame. Integrated optimisation software as standard. Independent control or data entry via company network software.
View Specs| Model | EL-4228 | EL-6133 |
| Glass Max | 4200 x 2800mm | 6100 x 3300mm |
| Glass Thickness | 2 - 25mm | 3 - 25mm |
| Speed Max | 180m/min | 180m/min |
| Accuracy ± | 0.20mm/m | 0.20mm/m |
| Power | 12kW | 18kW |
| Air | 7bar | 7bar |

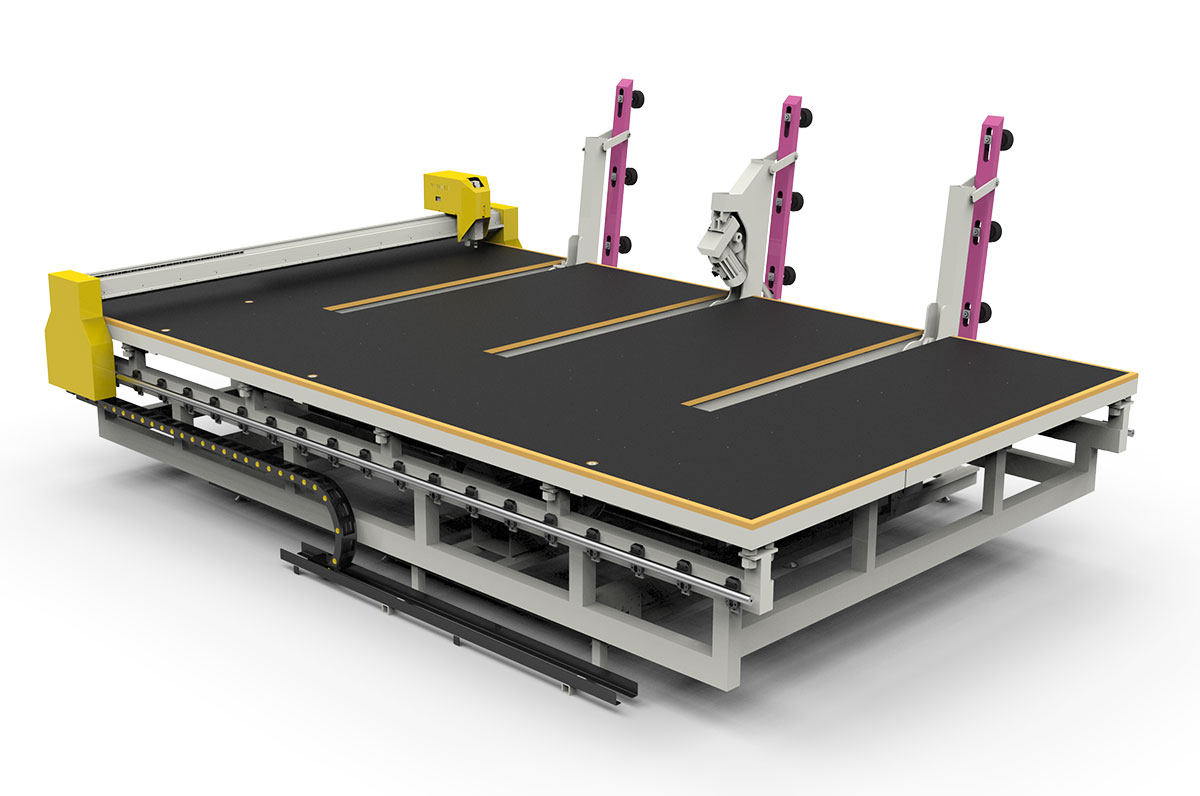

YR-MF Multi-function Cutting Tables
YR MF-2520
YR MF-3728
YR MF-4228
Stand alone automatic CNC cutting tables.
Independent control or data entry via company network software. Automatic loading from one side to static rack. Space saving. Aluminium alloy cutting bridge. High strength quenched steel frame.
Integrated optimisation software as standard.
View Specs| Model | MF-2520 | MF-3728 | MF-4228 |
| Glass Max | 2500 x 2000mm | 3700 x 2800mm | 4200 x 2800mm |
| Glass Thickness | 3 - 12mm | 3 - 12mm | 3 - 12mm |
| Speed Max | 140m/min | 140m/min | 140m/min |
| Accuracy ± | 0.20mm/m | 0.20mm/m | 0.20mm/m |
| Power | 10kW | 12kW | 13kW |
| Air | 6bar | 6bar | 6bar |
