Glass Tempering

Flat Glass Solutions can now offer the highly respected Yuntong Glass Tempering Furnaces.

Yuntong Glass Company was established in 1989 as a Glass Technology Institute and was the first Chinese company to design and manufacture horizontal glass tempering furnaces and now have over 600 furnaces installed worldwide including the UK.

View Brochure

Technical Features

Energy Efficient

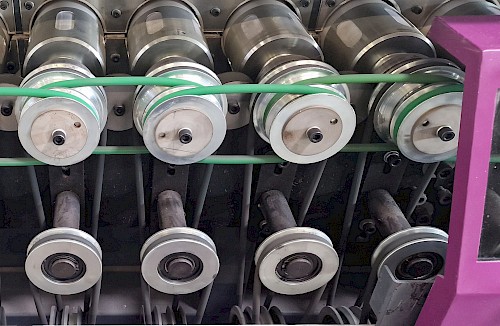

Low Maintenance

First Class Backup

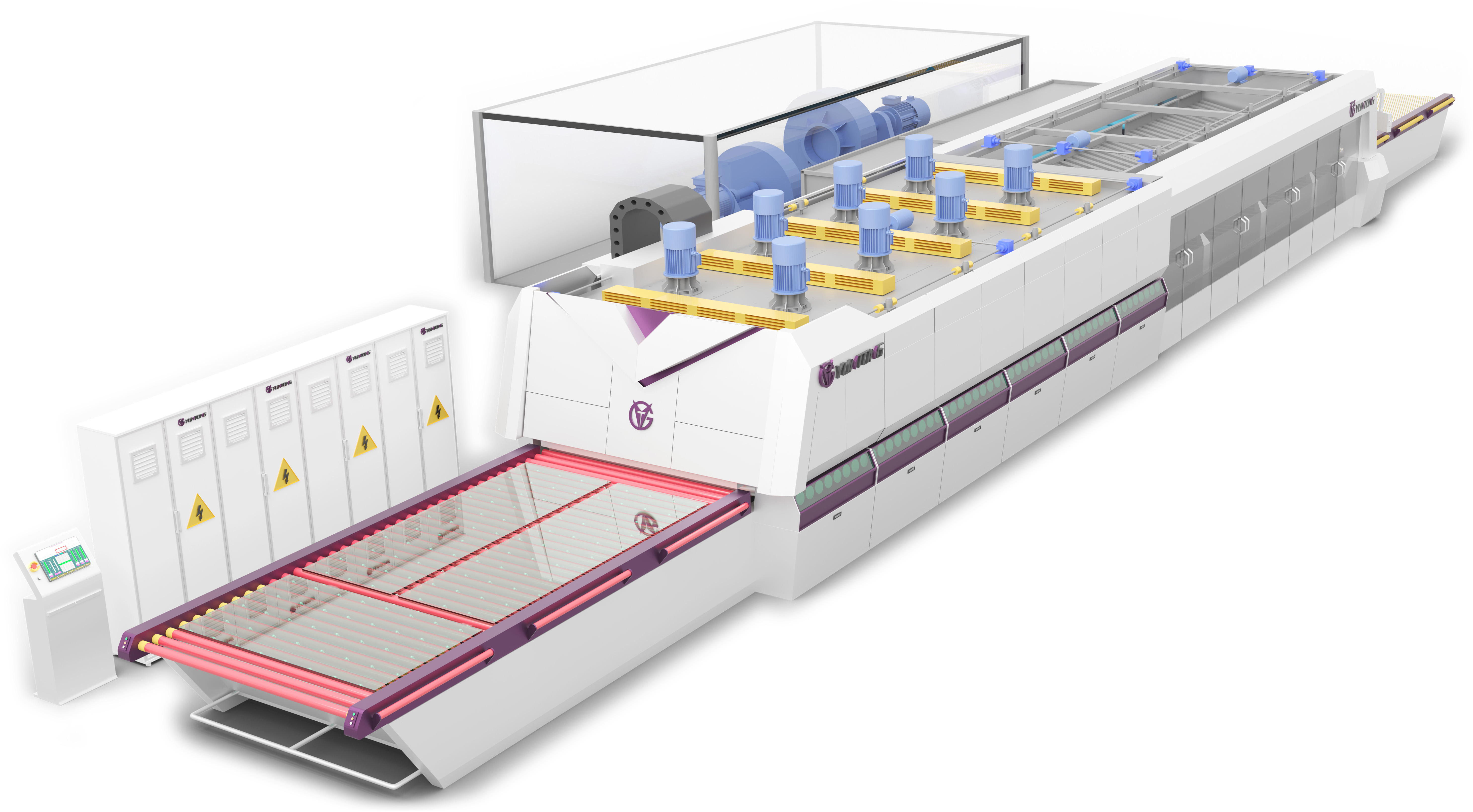

Glass Tempering Furnaces

Our Forced Convection furnace (FC) produces unmatched efficiency in heating all types of glass. Thorough analysis and understanding of high temperature air and it’s flow patterns, means we have developed the fastest and most efficient heating speed. The system is designed for longevity and endurance without distortion. Despite being very powerful, the Yuntong FC system does not need water-cooling or a back-up power supplies. Maintenance is very easy and costs very little.

The Yuntong FC system is capable of processing all Low E products on the market. In comparison with radiation heating, our FC system can improve heating efficiency by up to 25%.

View Specs

Innovative Flat Glass Solutions

Require a quote? Need to speak to us?

Call: 00 44 (0)1359 256143
sales@flatglasssolutions.com

Model	Max. Glass Size (mm)	Min Glass Size (mm)	Glass Thickness(mm)	Production Rate (5mm, batch/hour)	Power Supply KVA	L x W x H (meters)
Model	Max. Glass Size (mm)	Min Glass Size (mm)	Glass Thickness(mm)	Production Rate (5mm, batch/hour)	Power Supply KVA	Production line	Blower room
PG0612	614 x 1219	50 x 170	3.5 ~ 19	16 ~ 19	120	7 x 4.1 x 2.4	5 x 4 x 3.5
PG1224	1219x 2438	50 x 220	3.6 ~ 19	16 ~ 19	230	13 x 4.7 x 2.4	8 x 5 x 3.5
PG1524	1524x 2438	80 x 300	4 ~ 19	16 ~ 19	270	13 x 5 x 2.4	9 x 6 x 4
PG1530	1524x 3048	80 x 300	4 ~ 19	16 ~ 19	320	18 x 5 x 2.4	10 x 6 x 4
PG1830	1829x 3048	80 x 300	4 ~ 19	16 ~ 19	360	18 x 5.5 x 2.4	10 x 6 x 4
PG1836	1829x 3658	80 x 300	4 ~ 19	16 ~ 19	500	19 x 5.5 x 2.4	10 x 6.5 x 4
PG2136	2136x 3658	80 x 300	4 ~ 19	16 ~ 19	630	19 x 5.9 x 2.4	10 x 6.5 x 4
PG2142	2134x 4200	100 x 300	4 ~ 19	16 ~ 19	680	21 x 5.9 x 2.4	10 x 6.5 x 4
PG2436	2438x 3658	100 x 300	4 ~ 19	16 ~ 19	700	19 x 6.1 x 2.4	10 x 7 x 4
PG2442	2438x 4200	100 x 300	4 ~ 19	15 ~ 18	800	21 x 6.1 x 2.4	10 x 7 x 4
PG2450	2438x 5000	100 x 300	4 ~ 19	15 ~ 18	900	25 x 6.1 x 2.4	10 x 8 x 4
PG2460	2438x 6000	100 x 300	4 ~ 19	15 ~ 17	1050	29 x 6.1 x 2.4	10 x 8 x 4
PG3050	3048x 5000	120 x 330	5~ 19	15 ~ 17	1150	25 x 6.8 x 2.4	11 x 8.5 x 4
PG3060	3048x 6000	120 x 330	5 ~ 19	15 ~ 17	1200	29 x 6.8 x 2.4	11 x 8.5 x 4
PG3360	3300x 6000	150 x 350	5 ~ 19	14 ~ 16	1350	29 x 7.1 x 2.4	11 x 9 x 4
PG3580	3500x 8000	150 x 350	5 ~ 19	14 ~ 16	1900	36 x 7.3 x 2.4	12 x 9 x 4
