Vertical CNC
Tesir Makine Vertical CNC machines offer the fastest speed and best quality for processing glass doors, interior partitioning, exterior facades, automotive products, and household flat glass products such as shower enclosures and splashbacks.
With four powerful models we can offer automatic seaming and grinding, automatic edging and polishing, vertical drilling and vertical washing as stand alone machines or integrated together making a modern and advanced Industry 4.0 glass processing centre.

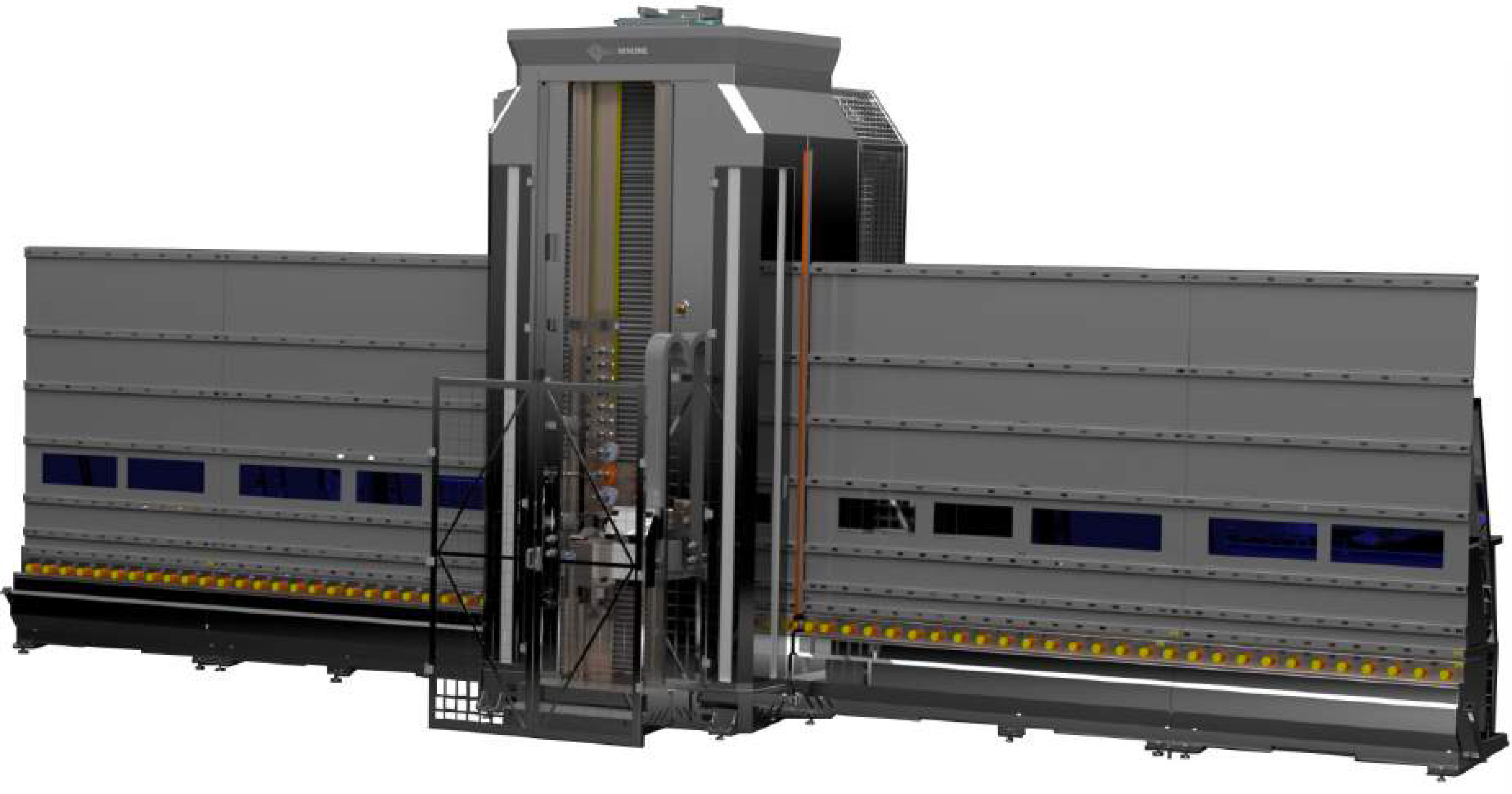

HG CNC

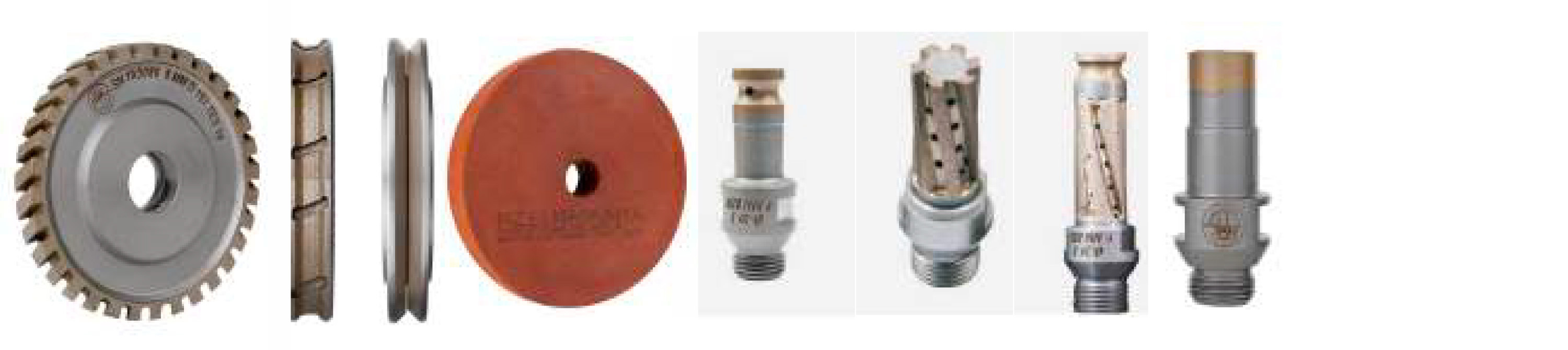

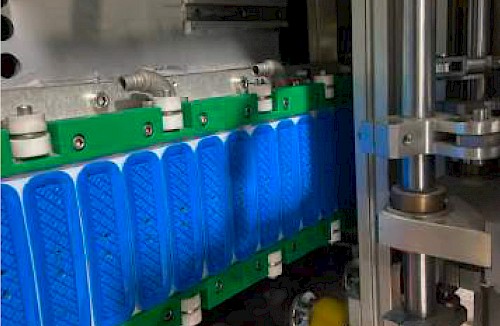

Representing the flagship model with the ability to carry out seaming, grinding, polishing, drilling, milling and countersinking on one machine. Elevating production technology with fast return of investment in an all-in-one solution. Glass movement with sophisticated vacuum conveyors. 10 tool magazine for automatic tool change. Powerful 13kW spindles with ceramic bearings.
View Specs| Min. Glass Thickness | 3 mm |
| Max. Glass Thickness | 19 mm |
| Min. Glass Height | 300 mm |
| Max. Glass Height | 2500 / 2800 / 3300 mm |
| Min. Glass Length | 700 mm |
| Max. Glass Length | 4000 / 6000 mm |
| Spindle RPM | 12000 RPM |
| Enegry Supply | 58 KW |
| Weight | 6.500 KG |
| Min. Hole Diameter | Ø3 |
| Max. Hole Diameter | Ø75 |
| Number of Magazines | 10 |

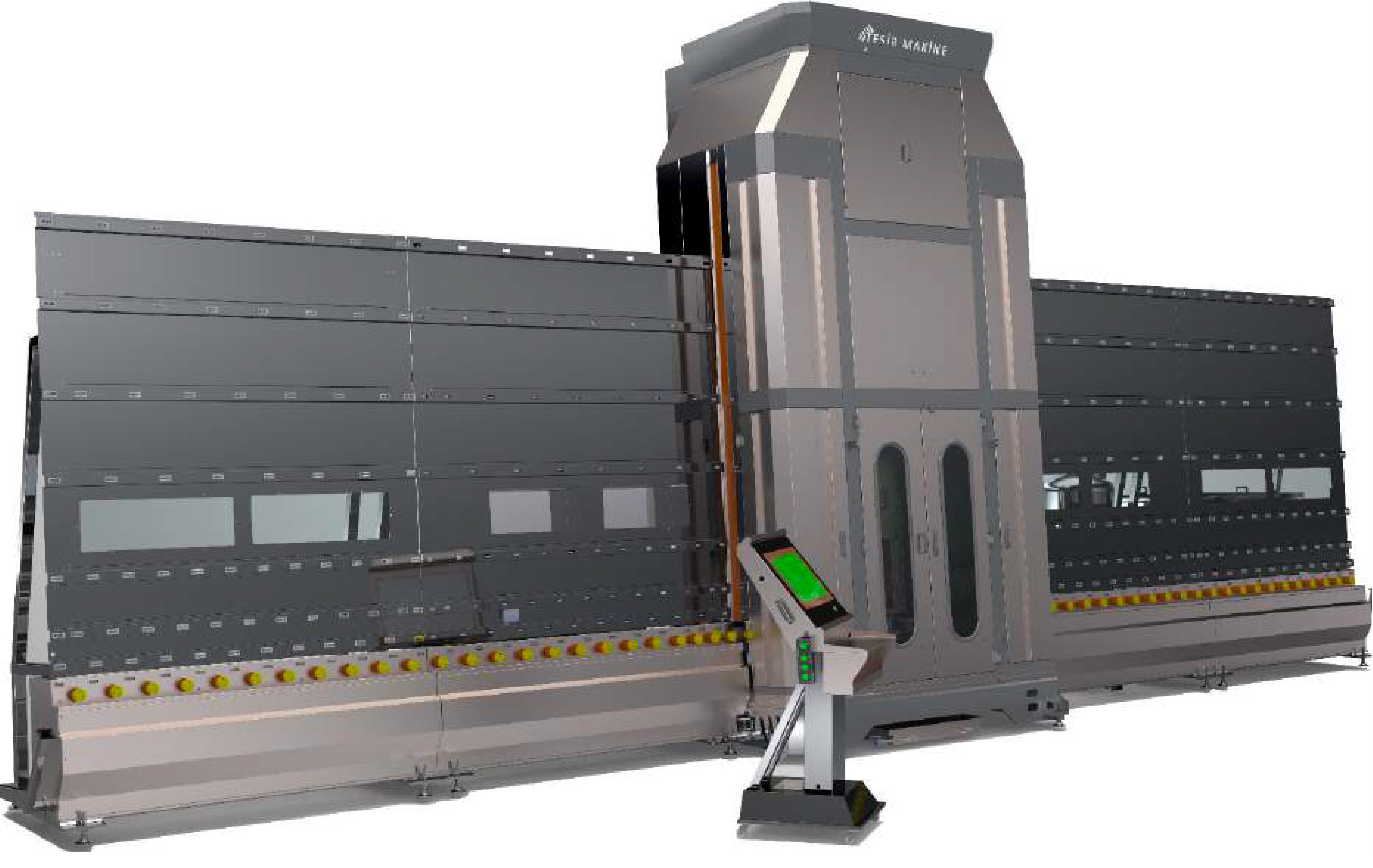

VT Edger

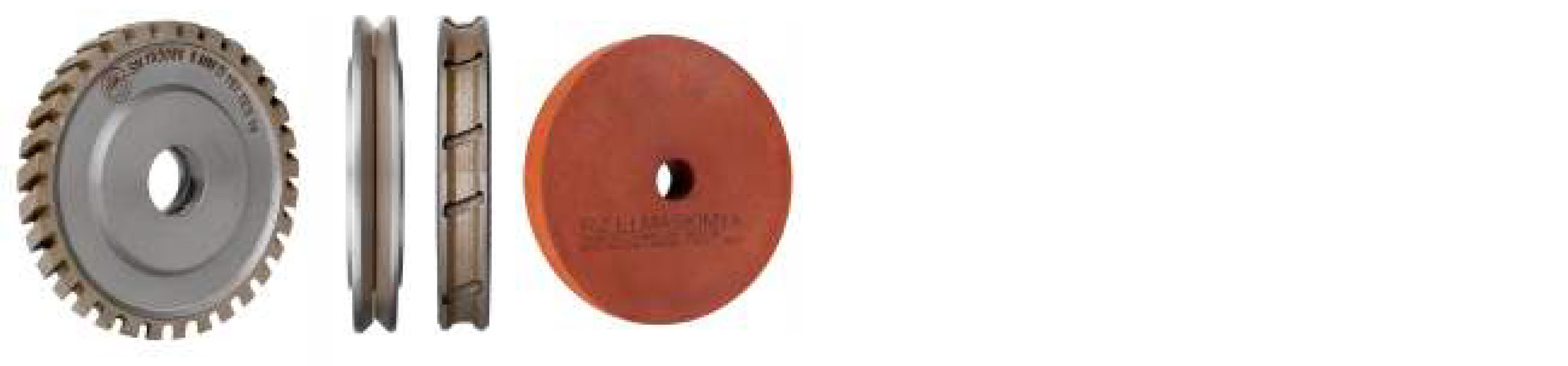

Specifically designed for efficient and automatic glass edge processing. Grinding, seaming and polishing for straight edge and shaped glass. Automatic air powered tool exchange. User friendly control interface and easy operation. Can be integrated to other lines included IG production.
View Specs| Min. Glass Thickness | 3 mm |
| Max. Glass Thickness | 19 mm |
| Min. Glass Height | 300 mm |
| Max. Glass Height | 2500 / 2800 / 3300 mm |
| Min. Glass Length | 800 mm |
| Max. Glass Length | 4000 / 6000 mm |
| Spindle RPM | 3500 RPM |
| Enegry Supply | 39 KW |
| Weight | 6.500 KG |

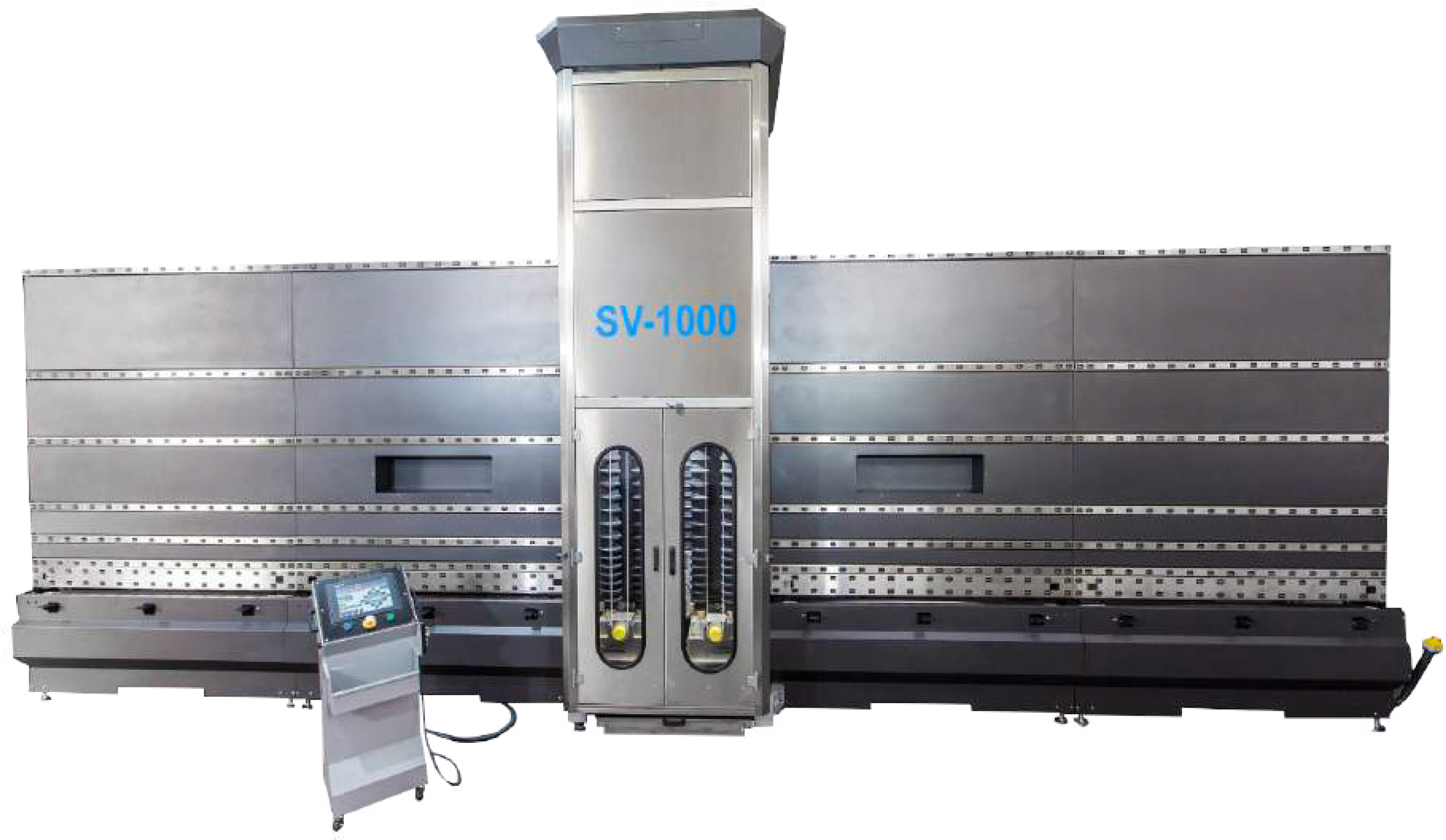

SV Seaming & Grinding
Featuring double head operation for superior seaming, grinding and optional polishing (architectural quality). Its high-speed performance makes it ideal for supporting IG lines and feeding tempering lines. This model offers automatic glass measurement and automatic glass thickness detection during the seaming process.
View Specs| Min. Glass Thickness | 3 mm |
| Max. Glass Thickness | 12 mm |
| Min. Glass Height | 200 mm |
| Max. Glass Height | 2500 / 2800 / 3300 mm |
| Min. Glass Length | 650 mm |
| Max. Glass Length | 4000 / 6000 mm |
| Spindle RPM | 250 – 3.800 RPM |
| Enegry Supply | 25 KW |
| Weight | 6.500 KG |

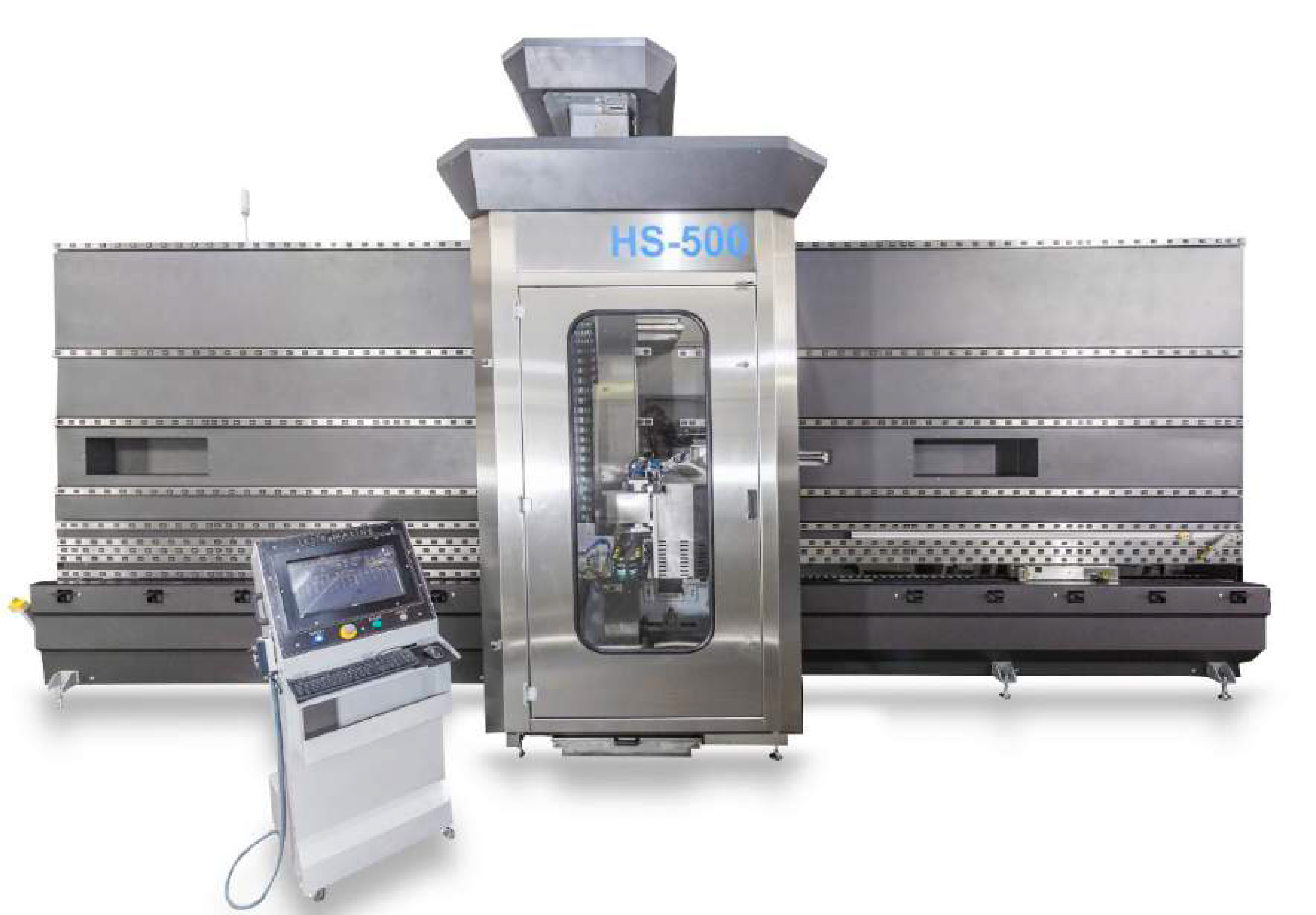

HS Drilling

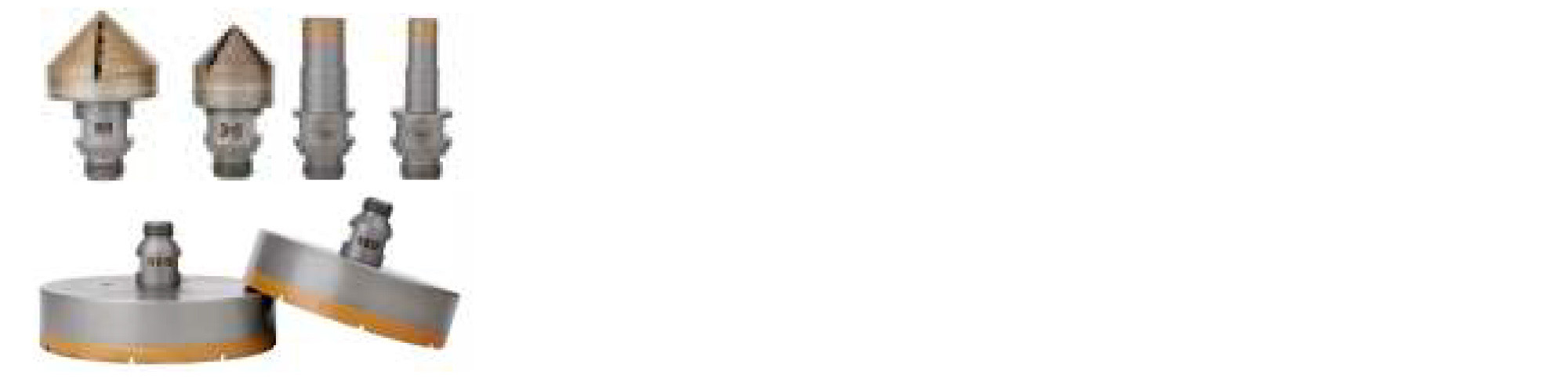

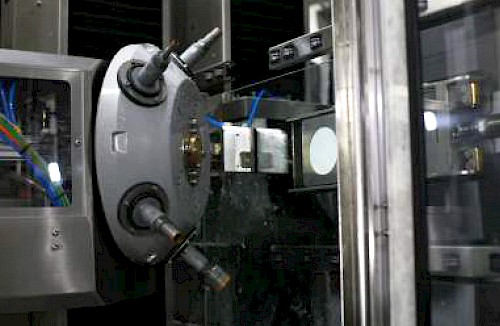

This automatic drilling machine features a clamping mode, six drilling heads on a rotating magazine and a stainless steel structure. Offering speed and precision while keeping processing costs low. Ideal for straight edge and shaped glass, this model excels in its durability and low maintenance, with minimal spare parts costs thanks to its robust construction and corrosion-resistant mechanical design.
View Specs| Min. Glass Thickness | 3mm |
| Max. Glass Thickness | 19mm |
| Min. Glass Height | 220 mm |
| Max. Glass Height | 2500 / 2800 / 3300 mm |
| Min. Glass Length | 600 mm |
| Max. Glass Length | 4000 mm |
| Enegry Supply | 16 KW |
| Weight | 5000 KG |
| Min. Hole Diameter | Ø3 |
| Max. Hole Diameter | Ø80 |
| Slots | 6 |
